Products · 60GHz mmWave Networks
airPATH60.
Fiber without
the trench.
60GHz mmWave point-to-point and point-to-multipoint links delivering 2.3Gbps full duplex — from 100 feet to 15 kilometers (9.3 mi). With Channel 5 & 6 support and an integrated 5GHz fallback on every unit, the link stays up when conditions get hard.
What is airPATH60?
Multi-gig wireless links. No fiber permit required.
The Miliwave airPATH60 series uses the unlicensed 60GHz band to deliver carrier-grade wireless backhaul and access links — indoors and outdoors — with the throughput and latency profile of a fiber run, at a fraction of the time and cost to deploy.
Unlike low-band wireless solutions that fight over congested spectrum, airPATH60 operates in the 57–71 GHz range. And unlike other 60GHz products that top out at Channel 4, every Miliwave radio supports Channels 5 and 6 — unlocking the upper portion of the band where oxygen absorption drops sharply and range jumps dramatically.
Pair with the built-in 5GHz 802.11ax backup radio and you have a link that self-heals during rain events or temporary obstructions — no truck roll, no support call.
Point-to-Point & Point-to-Multipoint
Connect two buildings directly or fan out to up to 32 client locations from a single hub radio.
One-Button Pairing
Press a button on each radio — they find each other, aim automatically, and come up as a secure multi-gig link. No laptop, no IP config, no RF expertise.
2.5GbE PoE on every unit
All outdoor models include integrated 2.5 Gigabit Ethernet with Power over Ethernet — no separate injectors or media converters needed.
G.hn Coax option
Long-Range and PRO models add an integrated 1.7Gbps G.hn coax port — ideal for buildings already wired with coax where a new Ethernet run isn't practical.
Heated radome standard on Long-Range
Keeps the antenna surface clear in ice and snow. Optional on PRO.
Mix and match models
NANO, PRO, and COMPACT are interoperable. Build the link distance and configuration your site actually needs.
Product Lineup
Four radios.
Every application covered.

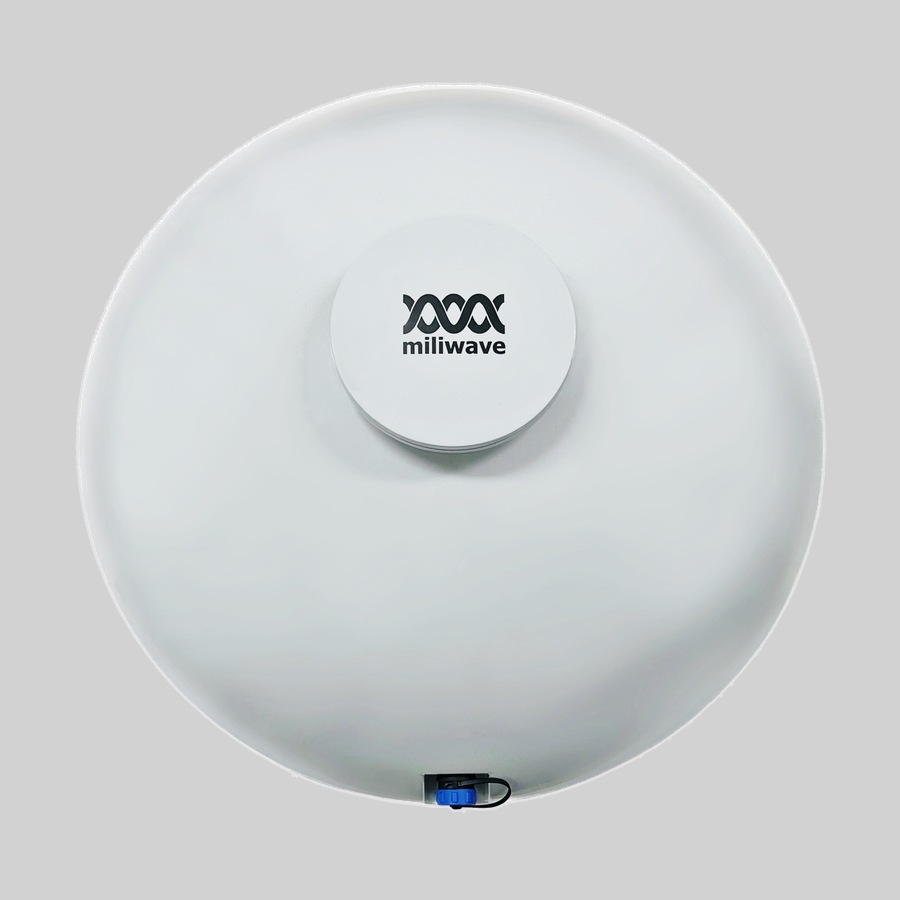

Long-Range
Outdoor · PtP / PtMP
- Up to 15 km (9.3 mi) range
- 2.3Gbps full duplex
- 2.5GbE PoE + G.hn Coax
- 5GHz 800Mbps fallback
- Heated radome standard
- Channels 1–6
Best for: building-to-building backhaul, tower links, broadband last-mile over distance.

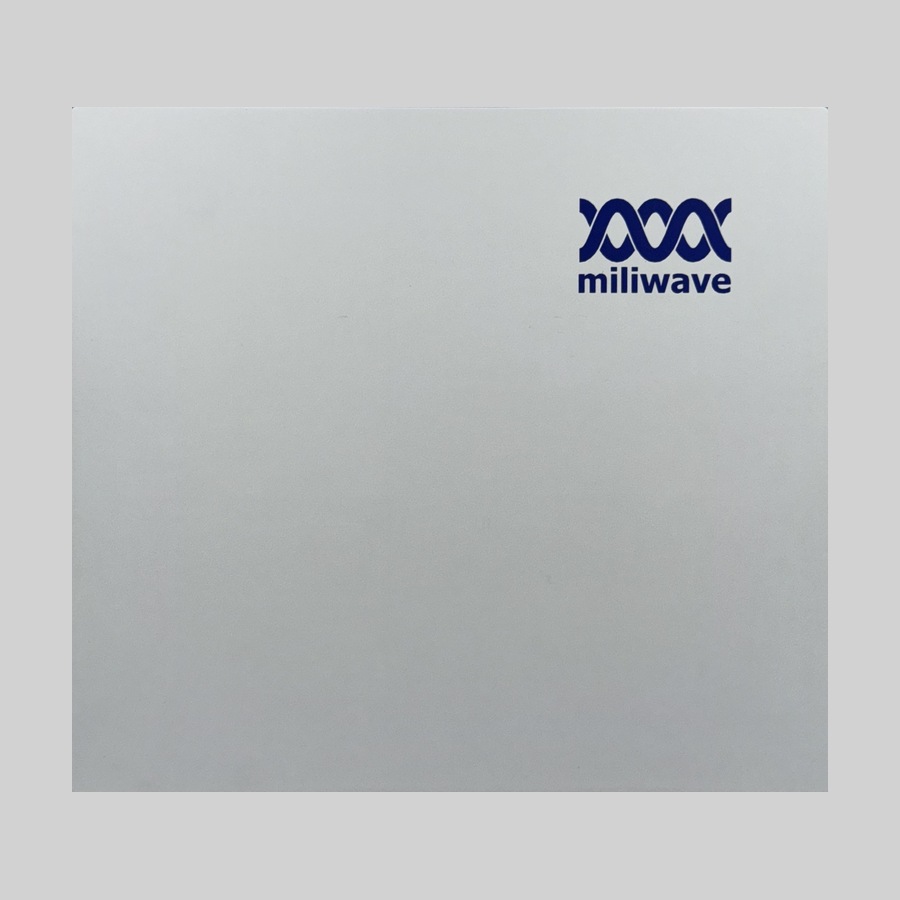

PRO
Outdoor · PtP / PtMP
- Up to 1 km (3,281 ft) range
- 2.3Gbps full duplex
- 2.5GbE PoE + G.hn Coax
- 5GHz 800Mbps fallback
- Heated radome option
- Wide beam: ±45° / ±25°
Best for: surveillance cameras, enterprise FWA, multi-point deployments needing wide coverage.

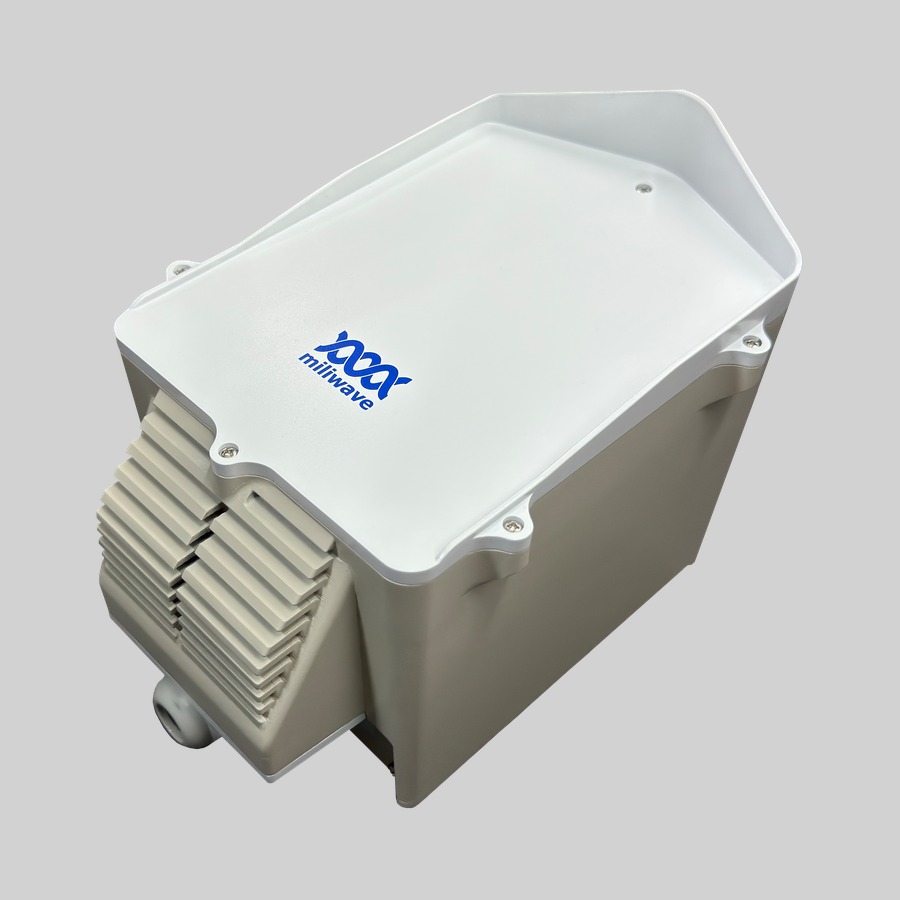

Compact
Outdoor · PtP / PtMP
- Up to 5 km (3.1 mi) range
- 2.3Gbps full duplex
- 2.5GbE PoE
- 5GHz 800Mbps fallback
- Beam steering 4° × 4°
- Channels 1–6
Best for: mid-range PtP links, construction sites, and deployments where a smaller enclosure matters.

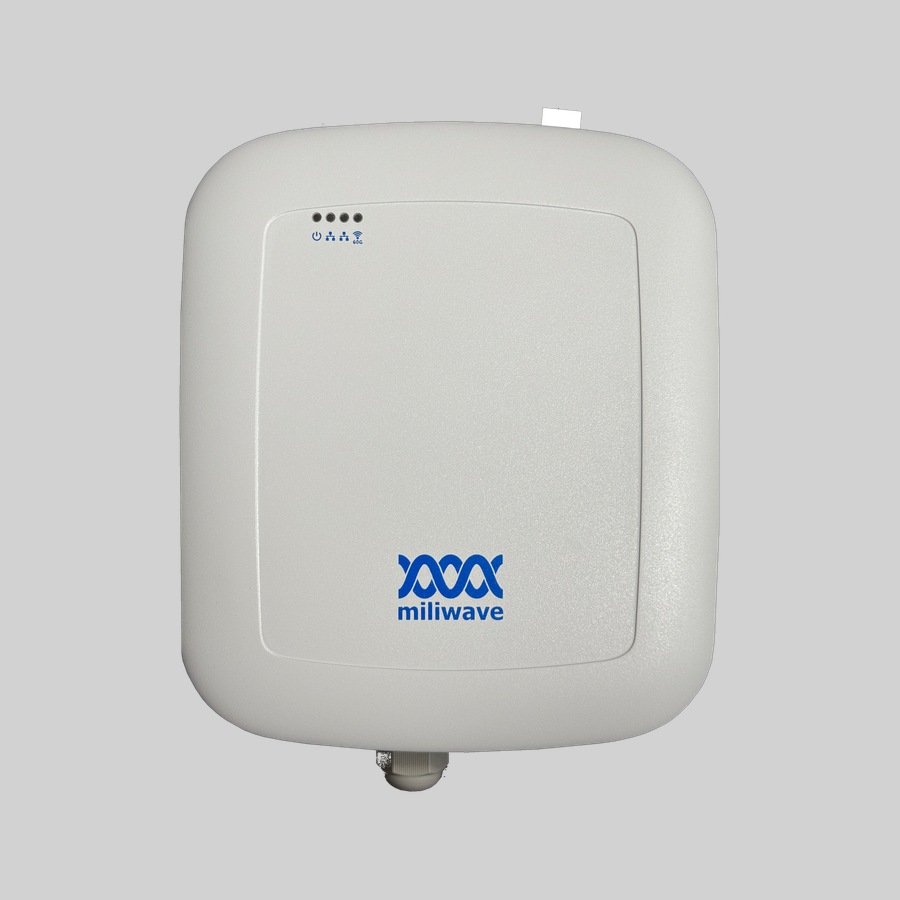

Nano
Outdoor · PtP / PtMP
- Up to 1 km (3,281 ft) range
- 2.3Gbps full duplex
- 2.5GbE PoE
- 5GHz 800Mbps fallback
- Smallest form factor
- 90° beam width
Best for: dense multi-point camera networks, daisy-chain configurations, and space-constrained mounts.
Flexible architecture
Mix & match to fit any site.
NANO, PRO, and COMPACT radios are interoperable. Run a NANO at the camera end and a PRO or COMPACT at the hub. Need to clear a corner? Add a relay pole — 60GHz is strict line-of-sight, so a single intermediary node bridges two legs a building would otherwise block.
- Up to 32 client locations per hub
- Daisy-chain nodes to extend reach
- PtP links up to 15 km (9.3 mi) on Long-Range
- PtMP links up to 2.5 km (1.6 mi) per sector
Model Comparison
Pick the right radio for the job.
| Model | SKU | Max Range | Speed | Backhaul | 5GHz Backup | Heated Radome | Form Factor |
|---|---|---|---|---|---|---|---|
| Long-Range | MWC-922 | 15 km (9.3 mi) | 2.3 Gbps | 2.5GbE + G.hn Coax | ✓ 800 Mbps | Standard | Outdoor PtP / PtMP |
| PRO | MWC-917 | 1 km (3,281 ft) | 2.3 Gbps | 2.5GbE + G.hn Coax | ✓ 800 Mbps | Option | Outdoor PtP / PtMP |
| Compact | MWC-932 | 5 km (3.1 mi) | 2.3 Gbps | 2.5GbE | ✓ 800 Mbps | — | Outdoor PtP / PtMP |
| Nano III | MWC-903 | 1 km (3,281 ft) | 2.3 Gbps | 2.5GbE | ✓ 800 Mbps | — | Outdoor PtP / PtMP |
| Nano IV | MWC-904 | 1 km (3,281 ft) | 2.3 Gbps | 2.5GbE | ✓ Dual-band Wi-Fi CPE | — | Outdoor PtP / PtMP |
Key Features
What sets airPATH60 apart.
Channels 5 & 6 — Up to 9× the Range, on the Same Radio
The top two 60GHz channels dodge the oxygen absorption that kills range at the lower channels — so one radio reaches up to 20 km (12.4 mi) instead of roughly 2 km (1.2 mi). Farther reach, fewer towers, cleaner spectrum.
Go ~9× farther
Up to 20 km (12.4 mi) on Ch5/6 vs ~2 km (1.2 mi) on the low channels. Fewer towers per build means lower infrastructure cost and faster deployment.
Holds up in rain
Still 7–9 km (4.3–5.6 mi) links in a heavy downpour — carrier-grade uptime for links that cannot go down.
Cleaner airwaves
The 64–71 GHz upper band is far less crowded than lower channels. Fewer interference issues, more simultaneous links per site.
Miliwave MWC-922 Long-Range — field-tested to 13.8 km (8.6 mi). Channel availability varies by regulatory region.

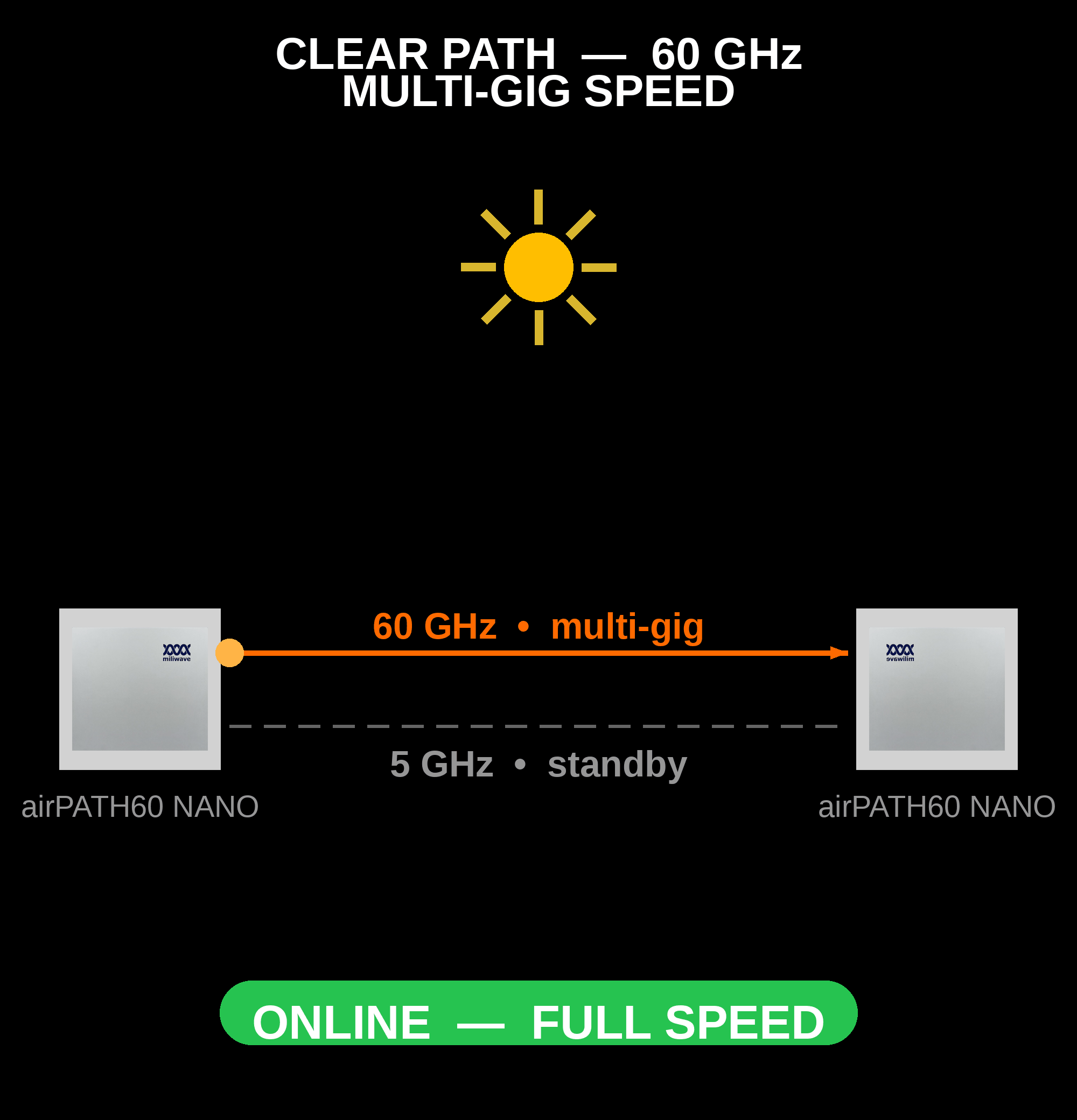

Automatic 5GHz Fallback — the Link That Stays Up
Every Miliwave radio has a built-in 5GHz backup. If rain or an obstruction ever interrupts the 60GHz beam, the radio switches to 5GHz by itself — the connection stays live, then returns to full speed on its own. No settings. No truck roll.
Never fully goes down
When the 60GHz beam is interrupted, 5GHz takes over in real time — a brief speed dip, not an outage. Critical surveillance and operational links stay live through the storm.
Zero-touch, zero truck rolls
Failover and recovery are fully automatic — no configuration, no site visit, no support call. The radio returns to 60GHz on its own when the link clears.
Standard on every product
Built-in dual radio — 60GHz + 5GHz (802.11ax) — on every outdoor Miliwave unit. Nothing extra to buy, nothing extra to configure.
One-Button Pairing — a Secure Link in Seconds
As easy as pairing Bluetooth — but carrier-grade. Press one button on each radio; they find each other, aim themselves, and come up as a secure multi-gig link. No IP addresses, no laptop, no RF expertise.
Anyone can install it
No networking know-how needed — if you can pair earbuds, you can bring up a link.
Minutes, not hours
Fewer steps means faster installs and a lower cost per site.
Secure by default
The two radios authenticate each other automatically — protected from the first packet.
Use Cases
Built for the applications
where wireless cannot fail.
Security & Surveillance
Feed up to 32 camera locations from a single hub — airport perimeters, stadium fences, construction sites. Lossless video at 2.3Gbps with automatic failover keeps footage flowing around the clock.
Enterprise FWA
Deliver multi-gig broadband to up to 32 buildings from a single rooftop or pole location — up to 2.5 km (1.6 mi) per sector, up to 15 km (9.3 mi) with Long-Range. Daisy-chain nodes to reach buildings a single hop can't cover.
Building Backhaul
Replace leased fiber runs between adjacent buildings with a licensed-free 60GHz link. No permit, no trench, no monthly recurring cost — the link pays for itself in months, not years.
Indoor & Convention
Ceiling-mount airPATH60 Nano APs across a show floor or factory hall and serve every square foot with a 60GHz cell. Connect laptops, tablets, robots, AR/VR headsets, and hospital carts at up to 2.3Gbps.
FAQ
Common questions.
A Revells engineer will answer anything not covered here directly.
Does 60GHz require line of sight?
Yes — 60GHz is strict line-of-sight and cannot pass through walls or turn corners. However, this is also what makes it interference-free and capable of the density that lower-frequency wireless cannot achieve. For paths with a corner obstruction, a single relay pole bridges the two legs cleanly.
What happens in rain or bad weather?
60GHz signals experience rain fade, particularly at longer ranges and on lower channels. The airPATH60 manages this two ways: Channel 5 and 6 support means the radio can operate in the upper band where rain fade is much less severe, and the integrated 5GHz 802.11ax backup radio activates automatically if the 60GHz link degrades — keeping the connection alive with no manual intervention.
How is this different from Wi-Fi 6E or Wi-Fi 7?
airPATH60 is purpose-built point-to-point and point-to-multipoint backhaul — not a general-access Wi-Fi system. It operates at higher power with directional antennas engineered for link budgets over 1–15+ km. The result is a full 2.3Gbps full-duplex link at range, with no shared-medium contention and no interference from surrounding Wi-Fi networks.
Is 60GHz licensed or unlicensed?
The 60GHz band (57–71 GHz) is unlicensed in the United States and most major markets, meaning no spectrum license is required. Channel 5 and 6 availability varies by region — a Revells engineer can confirm regulatory availability for your specific location.
Can we start with one link and expand?
Absolutely. Most deployments start with a single PtP link for a specific application — a camera run, a building connection — and expand when the performance proves itself. All airPATH60 models are interoperable, so the hub you install today scales to a 32-client PtMP network without replacing hardware.
Ready to scope your wireless link?
A Revells engineer will design a solution around your site, range, and use case — at no cost.
